Antenna Measurement System

Antenna Measurement System Image
Detail Image
Detail Image
Detail Image
Detail Image

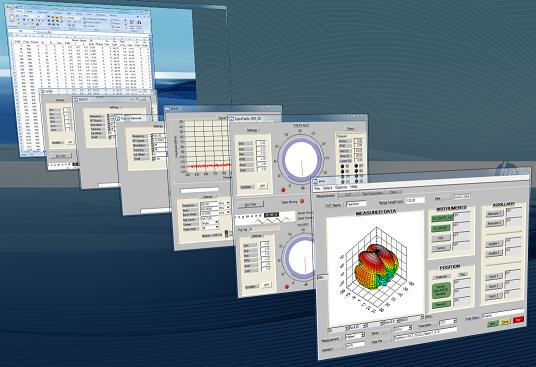

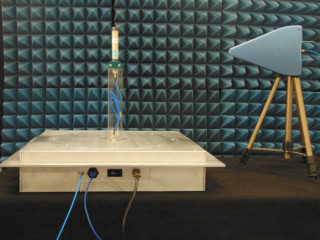

With the addition of a Vector Network Analyzer, or Spectrum Analyzer and Signal Generator, antenna measurements can be performed with this entry level system. The system includes, Spira-455 2D positioner, calibrated measurement antenna 700 to 10000 MHz, dielectric stands, cabling and our AMS 3D measurement software.

Spec Sheets:
Theta Measurement System
AMS Software Manual
Spira-455 2D / 3D Positioner
Detailed description of Antenna Measurement Systems pdf

Optional add-ons such as RF Switches, Cables, and Reference Antennas can be added separately.

Normally a stock item. Please confirm delivery with Raymond RF prior to ordering, or allow a maximum of 4 weeks to process your order.

Your Price:US$8,145.00
Weight:75.000 lbs
